TD6820
5.5V, 2A, Synchronous Buck Converter

Features

• Input operation range: 2.7 – 5.5V
• Input over voltage protection at 6V
• 40uA quiescent current in operation
• Output current up to 2A
• Efficiency up to 97%
• OCP, SCP and OTP protection
• SOT23-5L package

Application

• Set-top Box
• Solid State Drive
• WIFI and Network Devices
• Security surveillance system
• Toys
• TV
• All other electronic devices

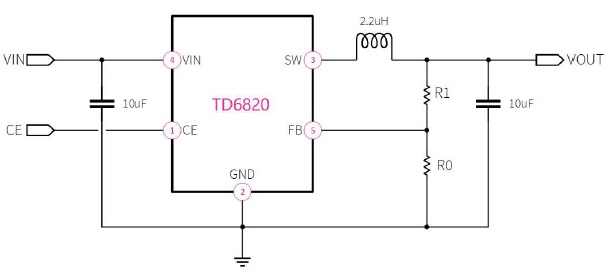

Typical Application Circuit of TD6820
