XL9022
2.5A 150KHz 50V Synchronous Buck DC to DC Converter

• Operation Voltage：5V~45V
• Adjust Vout from 1.25V to 40V
• Maximum Duty Cycle up to 90%
• Feedback Voltage Accuracy ±2%
• Fixed 150KHz Switching Frequency
• 2.5A Constant Output Current Capability
• Internal Optimize Power MOSFET
• High efficiency up to 95%
• Max. Output power up to 15W
• Excellent line and load regulation
• EN PIN TTL shutdown capability
• Built in thermal shutdown function
• Built in current limit protection function
• Built in output short protection function
• Temperature Grade 1: -40℃ to 125℃ Ambient Operating Temperature Range
• Device HBM ESD Classification Level Class3A

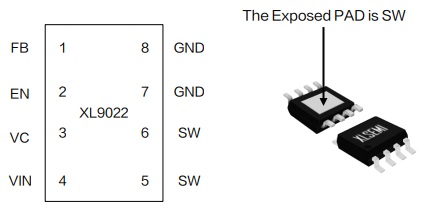

• Available in SOP8-EP package
